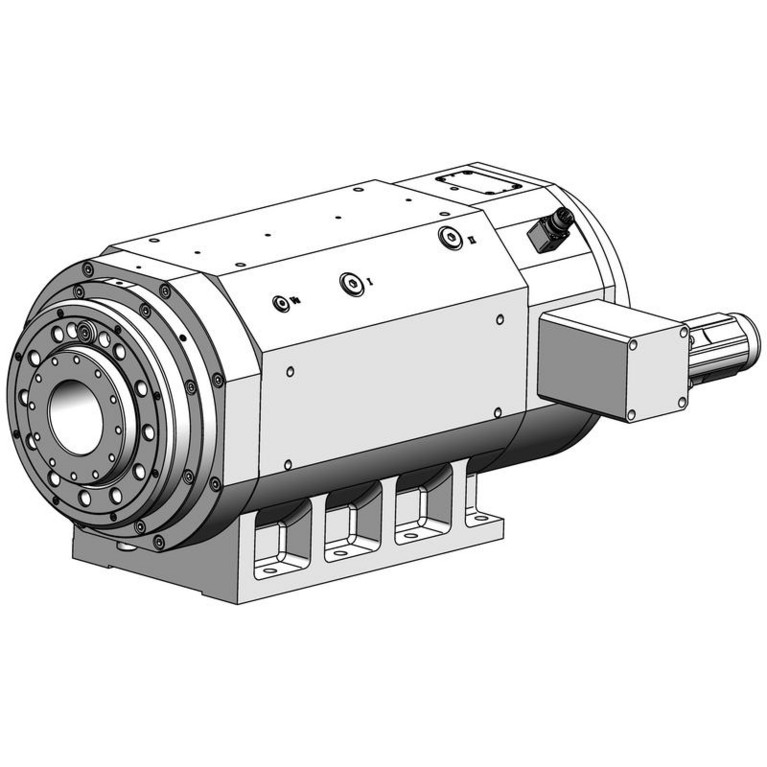

turning spindle D280MHEF0601022SVKKKX_15170
Individual
Lathe spindles feature interfaces from sizes A4 to A11 (DIN EN 55026). The spindles are available for a power range up to 104 kW (S1 operation) and rated torques of up to 820 Nm. They are available in both synchronous and asynchronous technology, and are especially noted for their compact design. With their high concentricity and maximum speeds of up to 10, 500 rpm, they satisfy every requirement faced by lathes.
Technical data
Series
Individual
Application
turning spindle
Interface
A8 (DIN 55026)
Shaft clamp
no
Release unit
none
Rotary feed-through
No
Rotary transducer
Yes
Maximum speed
5.500
Nominal speed
1.400
Nominal power
22
Nominal torque
150,0
Motor type
synchronous
Length
380
Bearing lubrication
grease
