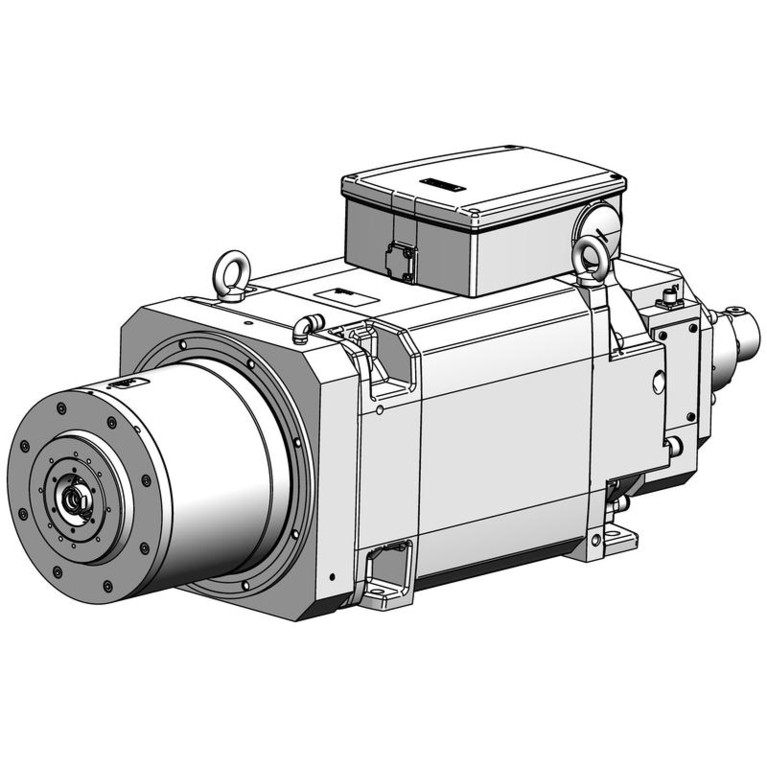

milling spindle F264BAEF0302026AV26KH_13499

Hybridspindel

A development is the Hybrid Spindle, a combination of a main spindle motor with an extension to a total milling spindle.The design includes all necessary spindle functionality, maximum speed up to 24,000 rpm and high accuracy because of direct driven technology. The Hybrid Spindle gives to machine builders the possibility to improve the performance of machines originally built with indirect spindle solution.

milling spindle F264BAEF0302026AV26KH_13499

Technical data

Series
Hybridspindel
Appli­cation
milling spindle
Inter­face
HSK-A63
Shaft clamp
no
Release unit
hydraulic
Rotary feed-through
Yes
Rotary transducer
Yes
Maximum speed
3.000
Nominal speed
1.750
Nominal power
25
Nominal torque
139,0
Motor type
asynchronous
Length
419
Bearing lubrication
grease
Datasheet CAD Download
