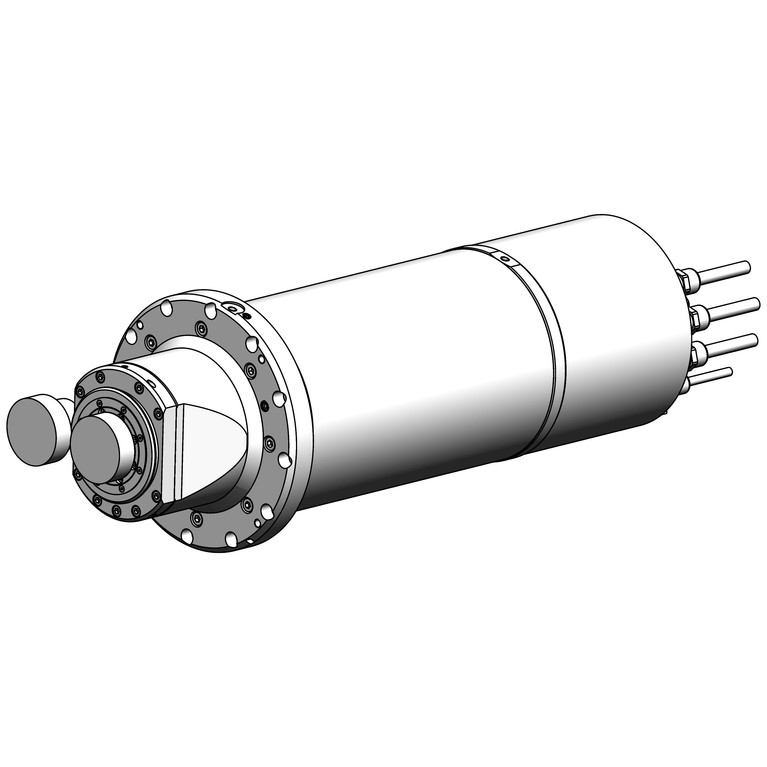

milling spindle F200PAEF1804035SS36KH_6312

Individual

Milling spindles are available for a power range of 11 to 80 kW(S1 operation) and rated torques of up to 300 Nm. They are available in both synchronous and asynchronous technology, and are especially noted for their compact design. With a maximum speed of 40, 000 rpm, they satisfy the requirements of typical, high - performance milling spindles in typical high - speed applications.

milling spindle F200PAEF1804035SS36KH_6312

Technical data

Series
Individual
Appli­cation
milling spindle
Inter­face
HSK-A63
Shaft clamp
no
Release unit
hydraulic
Rotary feed-through
Yes
Rotary transducer
Yes
Maximum speed
18.000
Nominal speed
4.300
Nominal power
35
Nominal torque
77,0
Motor type
synchronous
Diameter
200,0
Length
747
Bearing lubrication
grease
Datasheet CAD Download
