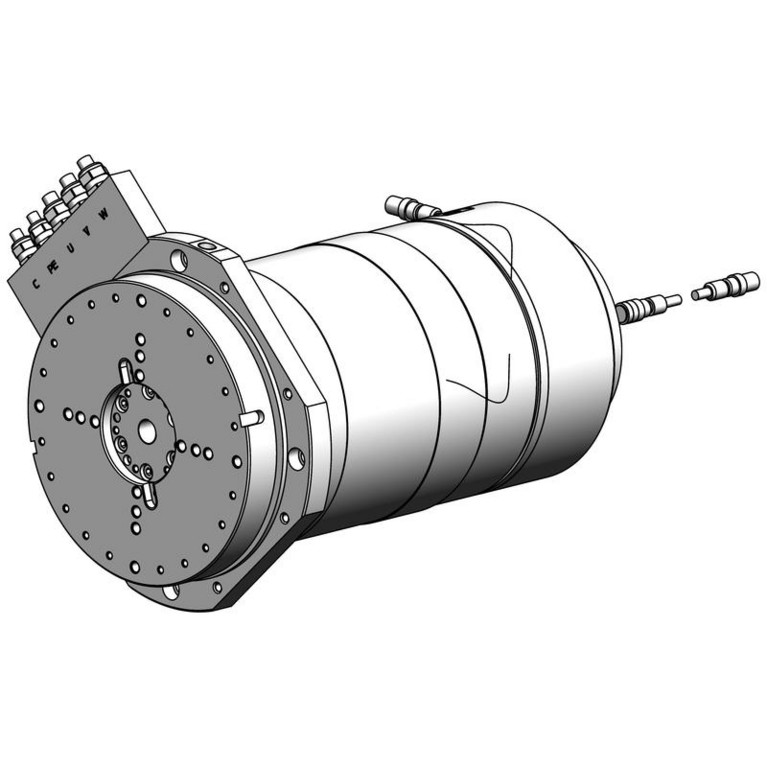

grinding spindle S476PSSO1203040AF---X_7367

Individual

Grinding spindles achieve top speeds of up to 80,000 rpm and are therefore ideal for internal cylindrical grinding. SM/SH spindles have a power range up to 30 kW and rated torques up to 24 Nm.

grinding spindle S476PSSO1203040AF---X_7367

Technical data

Series
Individual
Appli­cation
grinding spindle
Inter­face
special
Shaft clamp
no
Release unit
none
Rotary feed-through
No
Rotary transducer
Yes
Maximum speed
12.000
Nominal speed
3.000
Nominal power
40
Nominal torque
127,0
Motor type
asynchronous
Diameter
476,0
Length
500
Bearing lubrication
oil air
CAD Download
