grinding spindle S205BSSF0403063SHX-JX_7848

Individual

Grinding spindles achieve top speeds of up to 80,000 rpm and are therefore ideal for internal cylindrical grinding. SM/SH spindles have a power range up to 30 kW and rated torques up to 24 Nm.

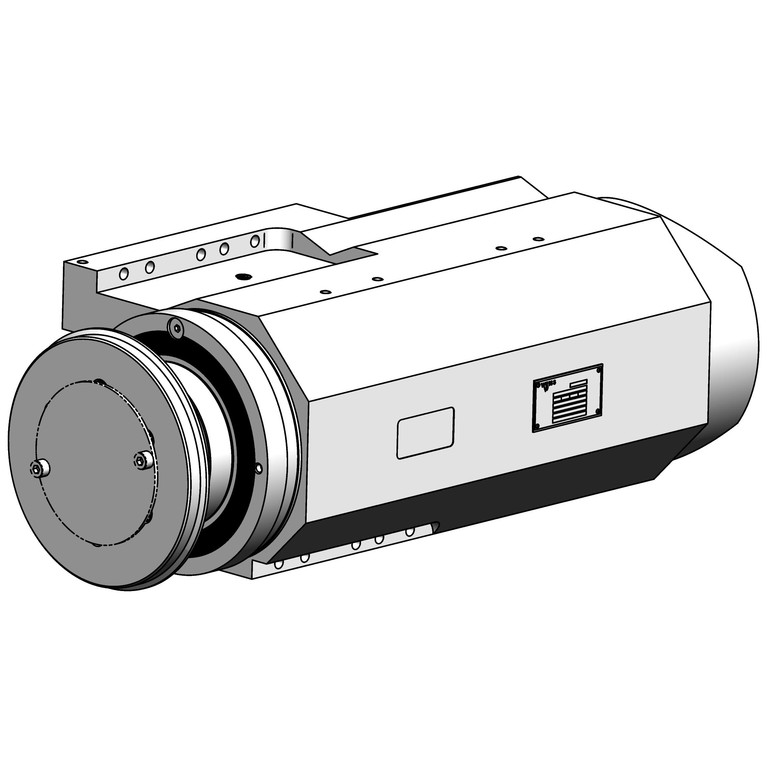

grinding spindle S205BSSF0403063SHX-JX_7848

Technical data

Series
Individual
Appli­cation
grinding spindle
Inter­face
special
Shaft clamp
no
Release unit
none
Rotary feed-through
No
Rotary transducer
Yes
Maximum speed
4.000
Nominal speed
3.000
Nominal power
63
Nominal torque
200,0
Motor type
synchronous
Length
606
Bearing lubrication
grease
Datasheet CAD Download
