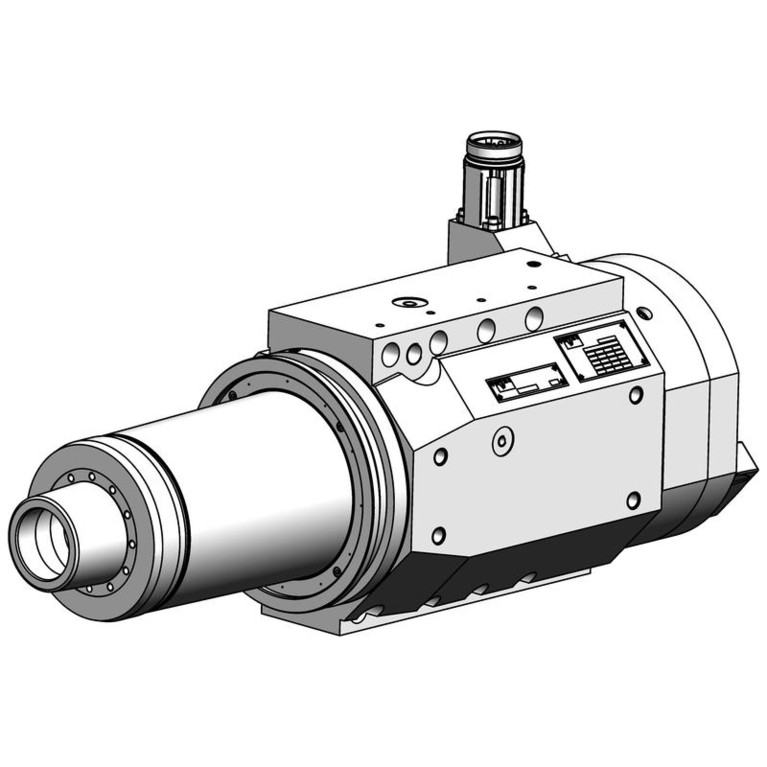

grinding spindle S196BSSF1007035SHK-JX_9621

Individual

Grinding spindles achieve top speeds of up to 80,000 rpm and are therefore ideal for internal cylindrical grinding. SM/SH spindles have a power range up to 30 kW and rated torques up to 24 Nm.

grinding spindle S196BSSF1007035SHK-JX_9621

Technical data

Series
Individual
Appli­cation
grinding spindle
Inter­face
special
Shaft clamp
no
Release unit
none
Rotary feed-through
No
Rotary transducer
Yes
Maximum speed
10.000
Nominal speed
7.400
Nominal power
35
Nominal torque
45,0
Motor type
synchronous
Length
660
Bearing lubrication
grease
Datasheet CAD Download
