Combined B-Axis with Milling-Turning Spindles

Spindle solutions for multi-tasking machines

Millling spindle with integrated B-Axis
High tilting rigidity of the B axis
No hysteresis under torque stress

Additional information

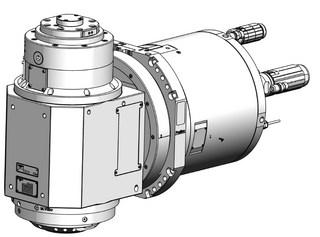

Combined B-Axis with Milling-Turning Spindles - 180400B

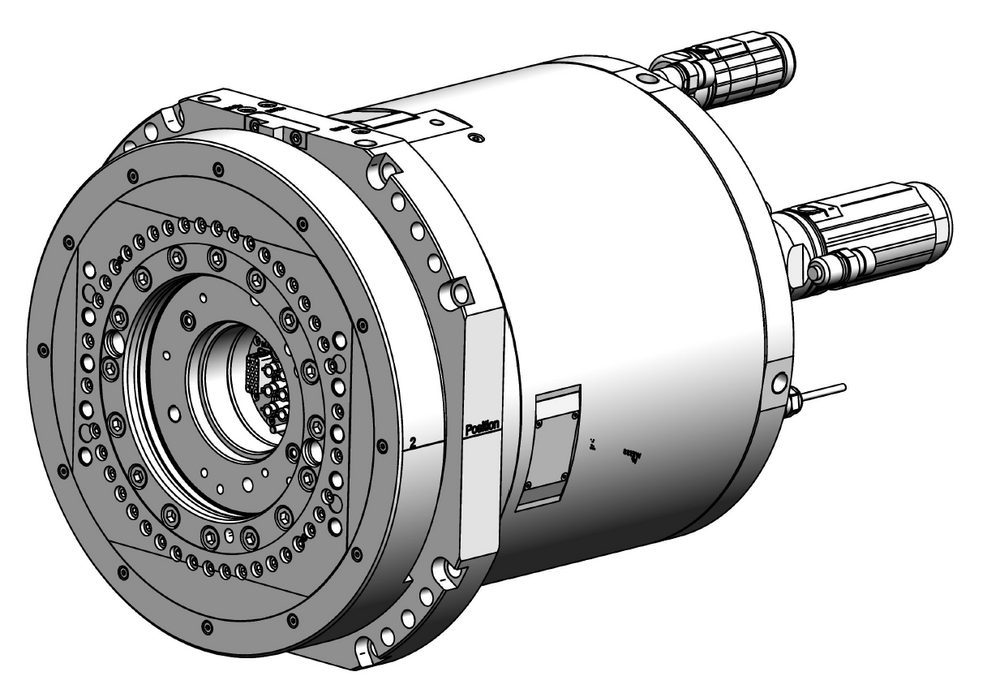

B-axis: 180489A

Interface: special
Kind of motor: synchronus
Nominal power: 6 kW
Nominal speed: 80 rpm
Max. speed: 120 rpm
Nominal torque: 484 Nm
Holding torque clamping: 6,000 Nm

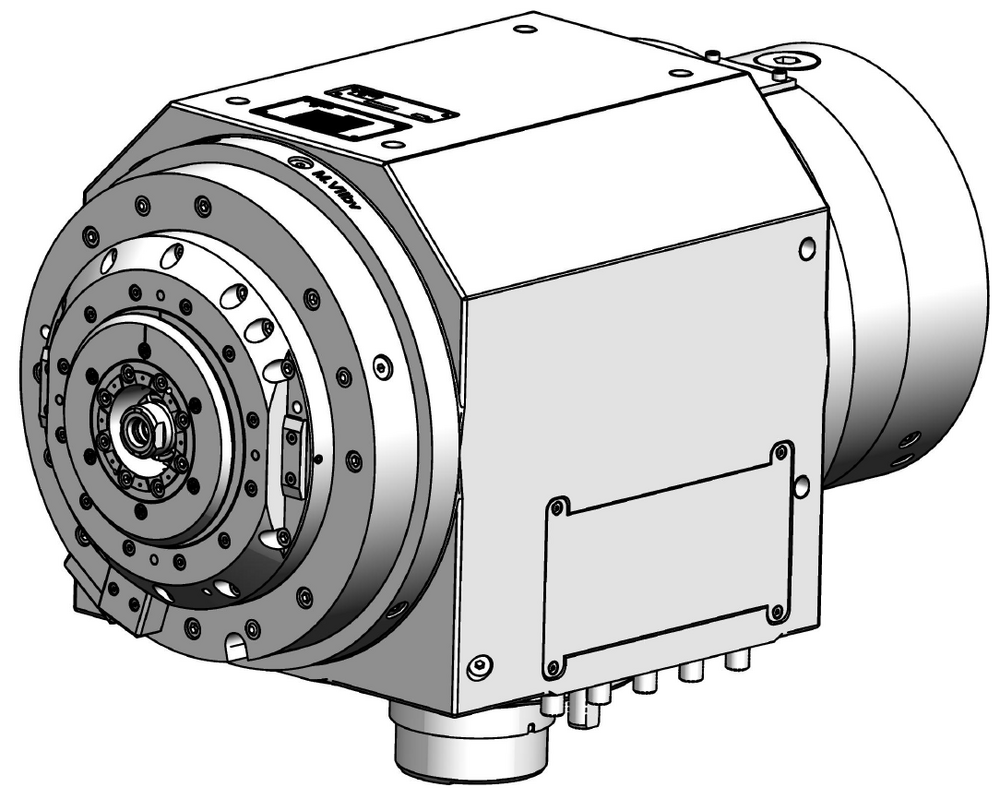

Attachment spindle B-axis: 180399B

Interface: HSK-T63
Kind of motor: asynchronus
Nominal power: 40 kW
Nominal speed: 3,000 rpm
Max. speed: 12,000 rpm
Nominal torque: 127 Nm
Holding torque clamping: 500 Nm
